Semiconductor Test Fixtures
Machine Specifications Overview
|
Machine Model
|
【1】LITZ Sigma9+
|
【2】LITZ Sigma8+
|
|---|---|---|
|
Machine Type
|
High-end CNC Twin-Spindle Turn-Mill Multi-Tasking Machine
|
CNC Turn-Mill Multi-Tasking Machine
|
|
Spindle Configuration
|
2 Main Spindles + 2 Sub-Spindles
|
1 Main Spindle + 1 Sub-Spindle
|
|
Axis Capability
|
Supports up to 9 axes (including high-precision C1 and C2 axis control)
|
8 Axes (including Y-axis)
|
|
Maximum Machining Diameter
|
ø 38 mm
|
ø 32 mm
|
|
Maximum Machining Length
|
320 mm
|
250 mm
|
|
Tool Capacity
|
36 tools (including live tool holders)
|
32 tools (equipped with live tooling)
|
|
Controller System
|
FANUC 31i-B
|
FANUC 0i-TF Plus
|
|
Key Features
|
Rapid and accurate processing of complex precision components
|
Engineered for automated, high-speed machining of compact components
|
|
Machine Model
|
【3】CHARNG MING CMV-6H
|
【4】CHARNG MING CMV-8H
|
|---|---|---|
|
Machine Type
|
Vertical Machining Center
|
Vertical Machining Center
|
|
Travel Range
|
X: 600 mm / Y: 400 mm / Z: 400 mm
|
X: 800 mm / Y: 500 mm / Z: 500 mm
|
|
Spindle Speed
|
10,000 rpm
|
10,000 rpm
|
|
Controller System
|
Mitsubishi M80 or FANUC 0i-MF
|
FANUC / Mitsubishi / Siemens
|
|
Tool Magazine Capacity
|
24 tools (servo tool changer)
|
30 tools (carousel-type magazine)
|
|
Key Features
|
Ideal for high-precision machining of molds and aluminum components
|
Suitable for large workpieces and heavy-duty machining
|
MORE PRODUCTS
-
Package on Package Socket
-
BGA/QFN Final Test Socket
-
Burn in Socket
-
PCR Test Socket
-
WLCSP Probe Heads
-
Semi-automatic Trolley for Burn-in Process
-
Handler Change Kit
-
ESD Coating
-
Laser Cleaner
-
Socket Brush
-

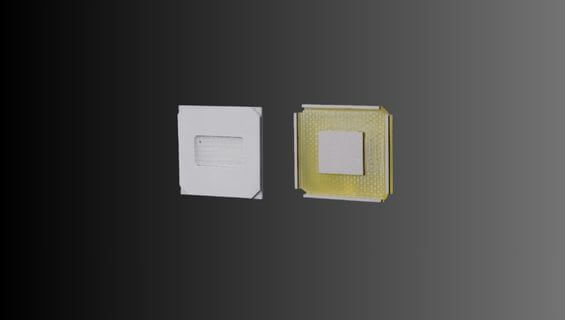

Clean Pad
-
