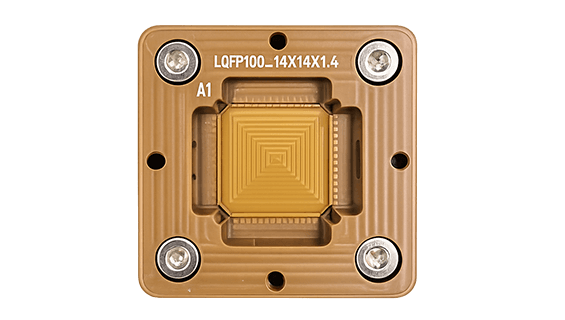

Final Test Socket
產品說明
BGA TEST SOCKET EXPLOSION DRAWING
可依客戶不同測試需求客製化設計及製作，目前最小pitch為0.3mm。
QFN TEST SOCKET EXPLOSION DRAWING
Spring Exposed
Kelvin
Crown
Finger
➊ Guide Plate (4XG) ➋ Housing (4XG) ➌ 膠條 ➍ Finger pin
產品規格
搭配探針規格
|
PKG
|
MODEL
|
SIZE
|
PIN COUNT
|
PITCH
|
|---|---|---|---|---|
|
BGA
|
POGO
|
3x3 - 50x50
|
9 - 3000
|
1.0 - 0.3mm
|
|
QFN
|
POGO
|
1.1x1.1 - 15x15
|
4 - 144
|
1.0 - 0.35mm
|
|
QFP
|
POGO
|
5x5 - 31x31
|
28 - 296
|
1.0 - 0.35mm
|
|
QFN
|
FINGER
|
3x3 - 12x12
|
9 - 128
|
1.0 - 0.35mm
|
|
QFP
|
FINGER
|
5x5 - 24x24
|
28 - 216
|
1.0 - 0.35mm
|
|
SPEC
|
|
|---|---|
|
Package
|
BGA, QFN, QFP
|
|
Pitch
|
>=0.25
|
|
Resistance
|
<=100mOhm
|
|
Bandwith
|
-1dB @40GHz
|
|
Bandwith
|
-1dB @40GHz
|
|
Temperature
|
-60~200
|
|
Current rating
|
0.5~7A
|
